Gasoline Engine Electronic Control Training Board

Product Description

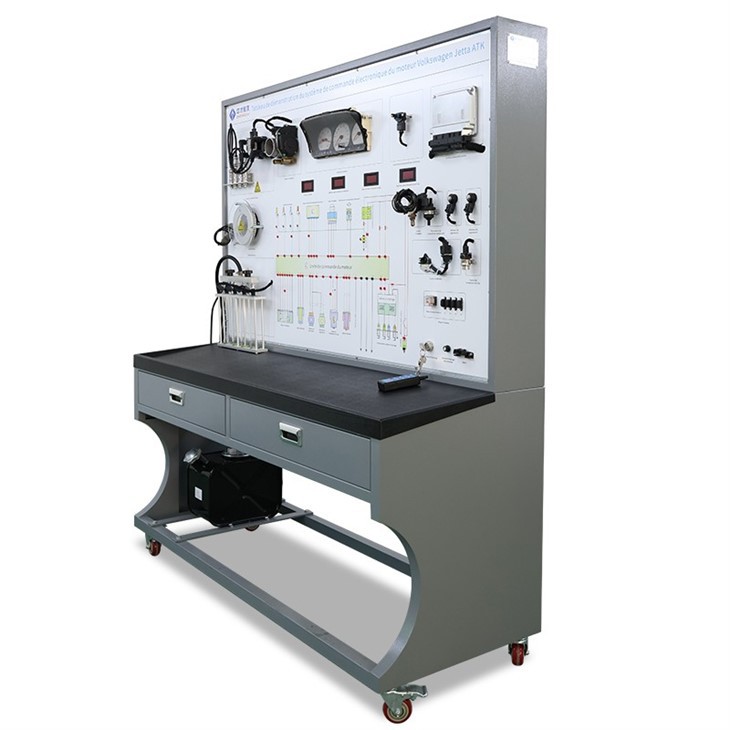

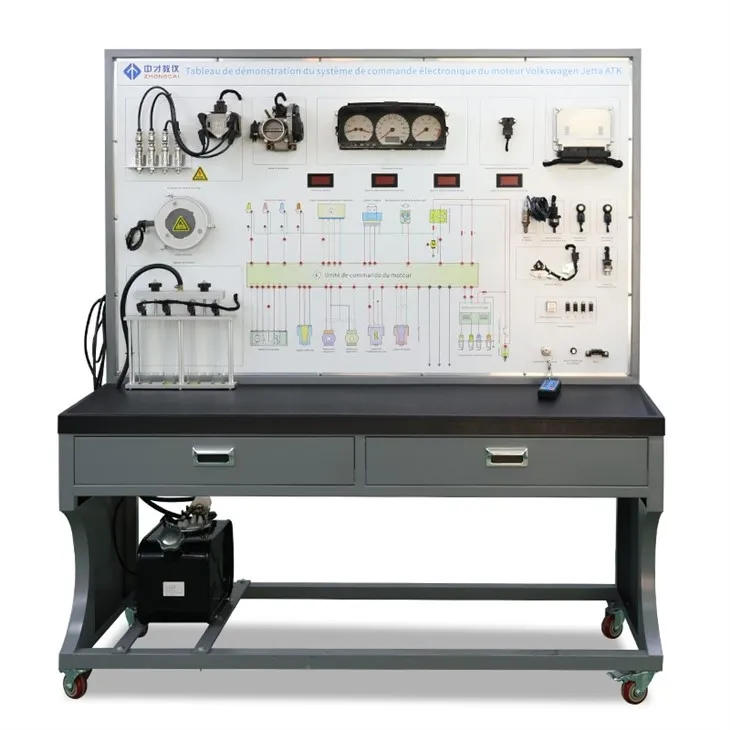

The Gasoline Engine Electronic Control Training Board is a professional automotive vocational training equipment designed for technical institutes, vocational schools, and automotive training centers. This system clearly demonstrates the working principles of the gasoline engine ECU, including signal transmission, control logic, and actuator response.

As a reliable gasoline engine teaching board, it enables students to understand electronic control systems through real component operation and practical exercises. It is widely used in automotive electrical training boards applications, supporting both theoretical teaching and hands-on skill development.

This automotive training platform combines demonstration, diagnostics, and testing functions, making it ideal for modern automotive education environments.

Function Features of Automotive Electrical Training Boards

This gasoline engine ECU teaching platform is designed to provide comprehensive training functions for automotive electrical systems:

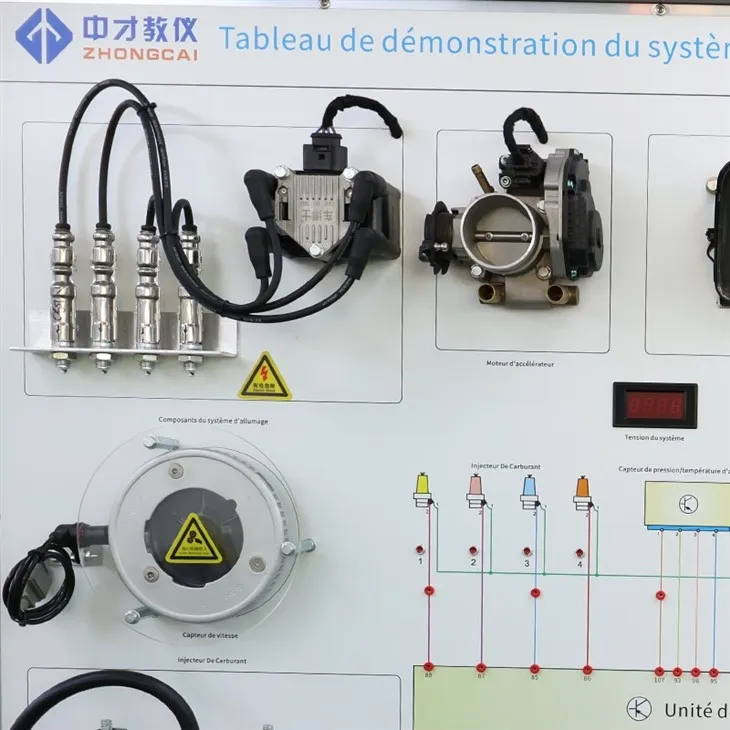

Real ECU control simulation including crankshaft signal, fuel injection, fuel pump operation, and ignition system demonstration, suitable for automotive electrical training

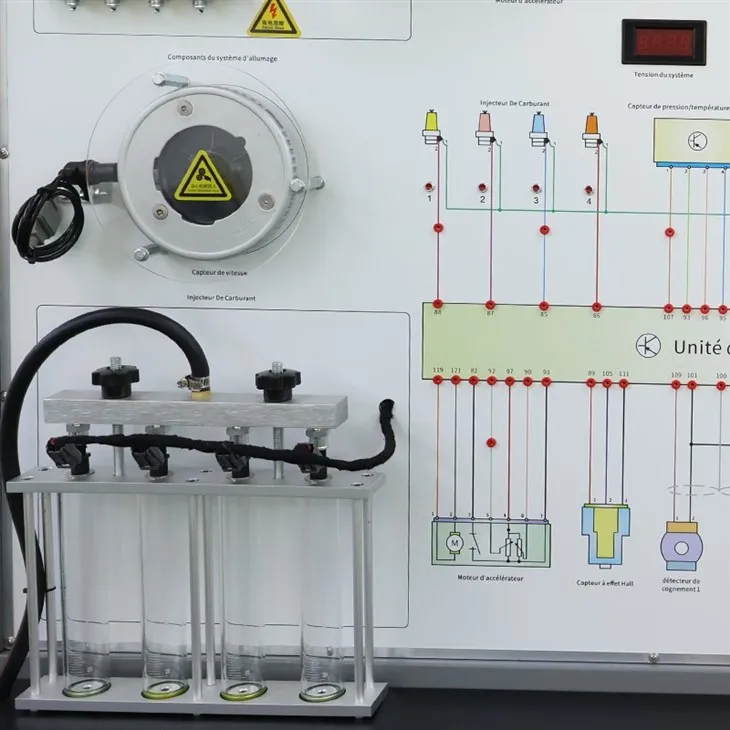

Intuitive front panel with complete circuit diagrams and signal flow charts, improving efficiency in automotive vocational training equipment usage

Built-in test terminals supporting voltage, resistance, current, and frequency measurement, ideal for ECU diagnostic training

Integrated OBD diagnostic interface for fault code reading, clearing, and system analysis using standard scanners

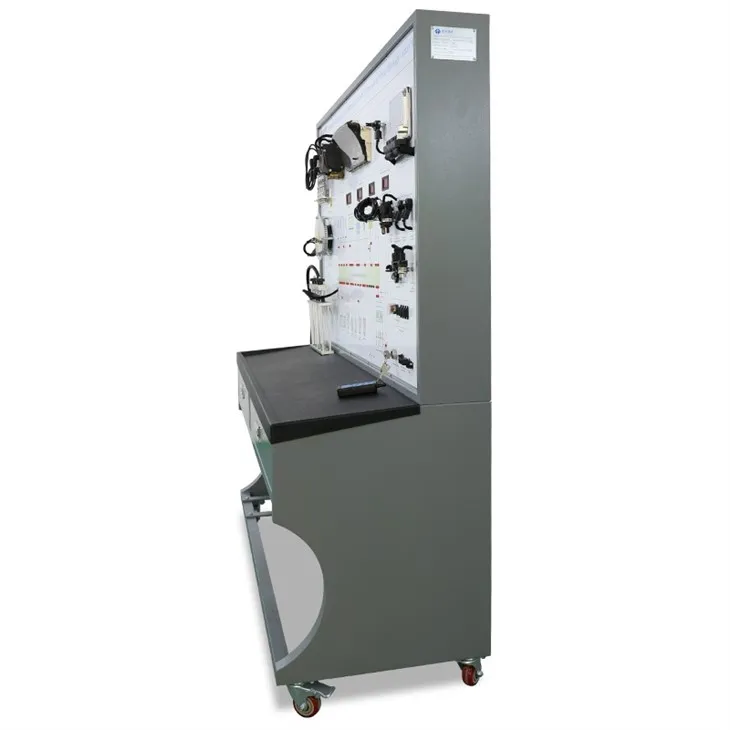

Durable structure with steel frame and aluminum panel, designed for long-term use in automotive training platform environments

Equipped with universal casters and storage drawers for flexible classroom application

Technical Specifications of Automotive Training Platform

This educational laboratory equipment is engineered for stable and safe operation:

Dimensions: 1600 × 600 × 1700 mm

Power Supply: AC220V ±10% 50Hz

Operating Voltage: DC12V

Operating Temperature: -40°C to +50°C

Fuel Pressure Range: 0–10 kg/psi

Caster Size: 100 × 60 mm

Frame Material: 60 × 40 × 3 mm steel tube

This robust automotive training equipment ensures reliability in daily teaching and training scenarios.

Competitive Advantage & Training Value

Compared with standard products on the market, this gasoline engine teaching board offers enhanced practical training value:

Integrated system combining demonstration, testing, diagnostics, and training in one automotive electrical training board

Supports real fault diagnosis and troubleshooting, improving hands-on ability in practical automotive training

Helps students master ECU control logic and diagnostic procedures efficiently

Suitable for skill assessment, certification training, and classroom teaching

Additional advantages we provide:

Free diagnostic tools included (multimeter and basic testing accessories)

Complete training course materials to support teaching and student learning

Technical support for installation and operation guidance

This makes our electronic control education equipment more competitive and valuable compared to conventional suppliers.
