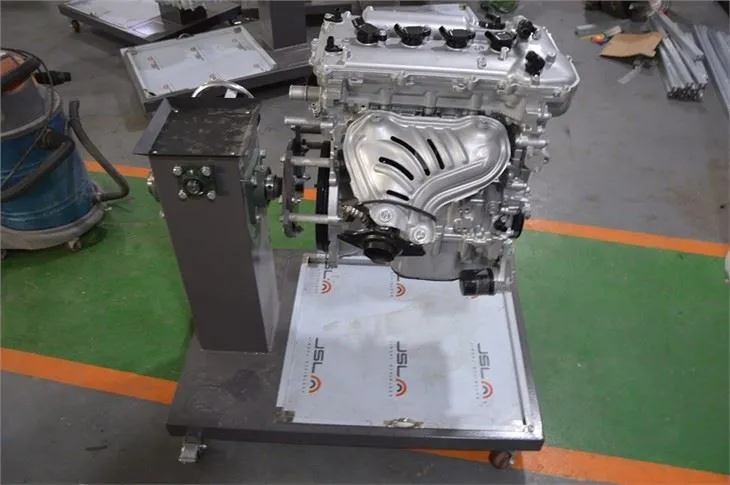

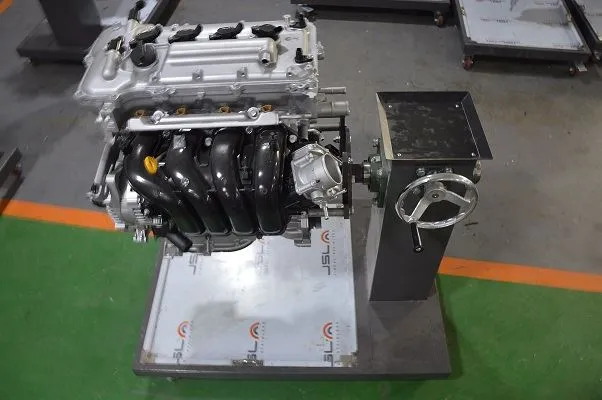

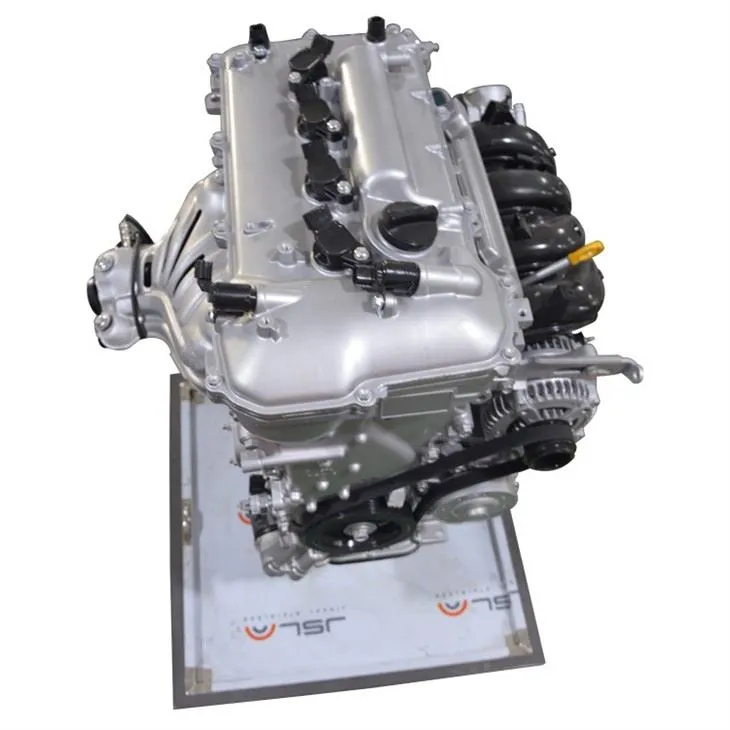

Electric Control Gasoline Engine With Disassembling Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electric control gasoline engine with disassembling board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Features:

(1) It is composed of oil basin, turbine deceleration self -locking mechanism, mobile tables, and engine installation mechanisms;

(2) There are many fixed methods for the engine and the bracket, which can rotate at a axis of 360 degrees. The operation space is large, which is convenient for disassembling crankshafts, pistons, connecting rods, cylinder cover, etc.;

(3) Multifunctional brackets are suitable for various types of engines with strong versatility; the deceleration rotation device adopts integrated carrier self -locking;

(4) The turbine  structure, with locking function, ensure that automatic locking can be automatically locked at any angle;

(5) Large -area oil plate, so that tools, waste oil, and parts will not drop oil into the earth;

(6) The turning bracket can bear 300kg, high -temperature spraying and high -strength steel structure, with locking and moving  wheels, easy to move, solid and durable;

(7) The table frame is equipped with 4 mobile foot wheels, and the tablet is fixed. The four foot wheels have a lock function, which can be locked at any time.

Technical specifications:

Steel size: 40*40*3mm.

Universal foot wheel: four universal foot wheels lock function.

The foot wheel and the table frame are fixed with the M8*20 screws, which is convenient for equipment maintenance

Foot wheel size: 3 inches.

Drifting size: 1000*700*850mm

Driver of oil basin: 700*620*35mm
