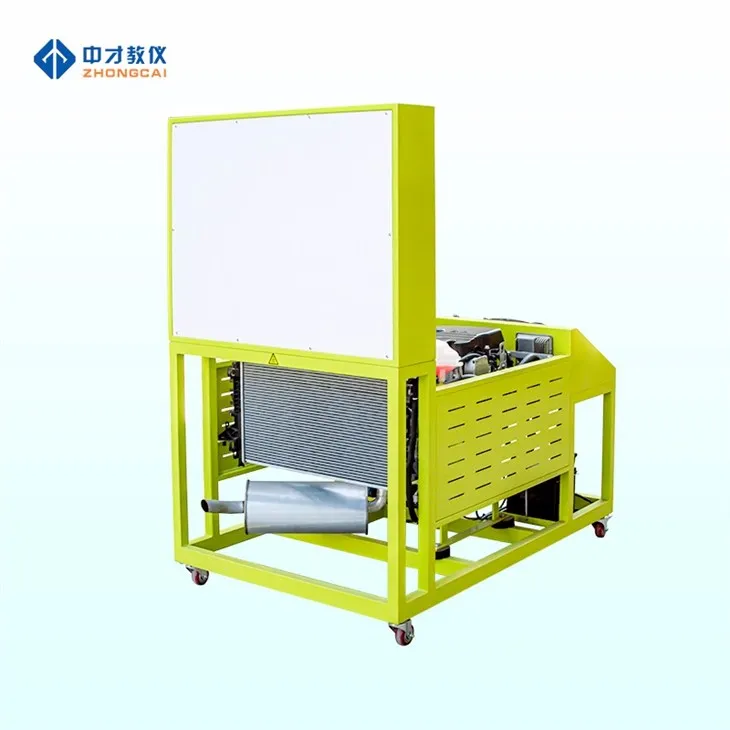

Automotive Education Engine Training Model

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive education engine training model in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Overview:

The training table can start the motor for running experiments, the teacher can teach the motor control principle through the teaching board of the training table, cultivate the students' ability to analyze and solve practical errors, and form an organic combination of theory and practice.

Automotive education engine training model is suitable for the practical teaching of automobile engine design and maintenance in middle and higher vocational and technical schools and automobile training institutions, and can meet the teaching needs of different levels of schools on the structural composition, working principle, fault adjustment and diagnosis of electronically controlled engines.

Functional features :

(1) The engine works normally and reflects the structural composition and working process of the EFI gasoline engine;
(2) Engine test stand with dynamic operation and display function, original instrumentation and digital instrumentation to display engine dynamic and static signal parameters in real time;
(3) Built-in LED lights to display the working status of fuel injection and ignition pulse-related components;
(4) Teaching board equipped with a complete color circuit diagram of the engine electronic control system, ECU terminal functions, fuel injection system LED display, etc., which facilitates the teacher to explain the system intuitive knowledge;
(5) The automotive education engine training model is equipped with a diagnostic socket, which can be connected to a special or general-purpose car decoder to realize the electronic engine control system to read fault codes, clear fault codes, read data streams and other self-diagnostic functions.
(6) Self-diagnostic functions: reading dynamic and static data streams, reading error codes, waveform analysis, testing the effect of actuators and other functions.
(7) Electrical control system detection function: the teaching board is installed with computer connection, and the resistance, voltage, frequency and waveform of sensors and actuators can be detected with multimeter and oscilloscope.
(8) The automotive education engine training model is equipped with an error evaluation device suitable for teaching, which can set one or more common errors to meet the teaching evaluation requirements of vocational schools.

Technical parameters:

Table size: 1600 * 1300 * 1800mm (L * W * H)

Working power: 12VDC

Fuel standard: 92#
Weight 150KG
