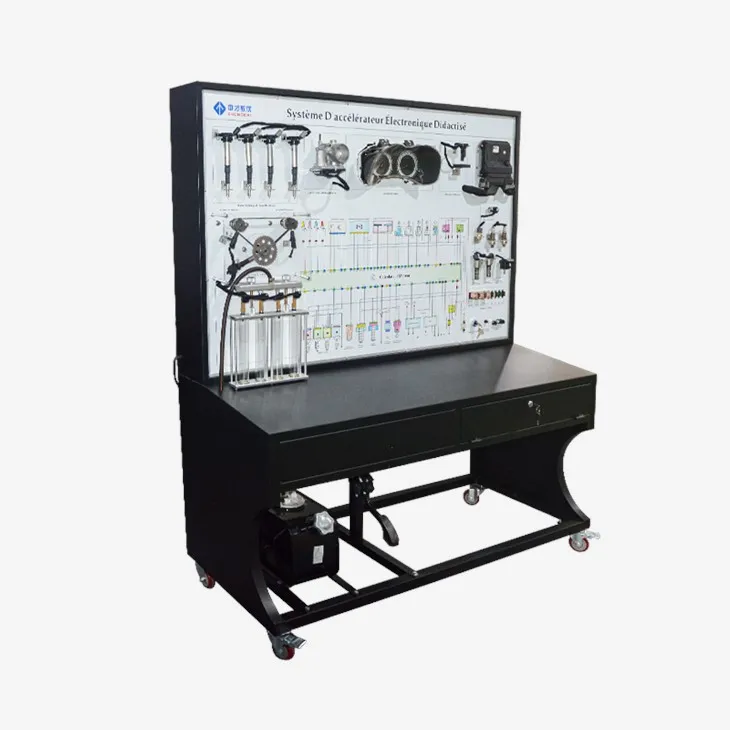

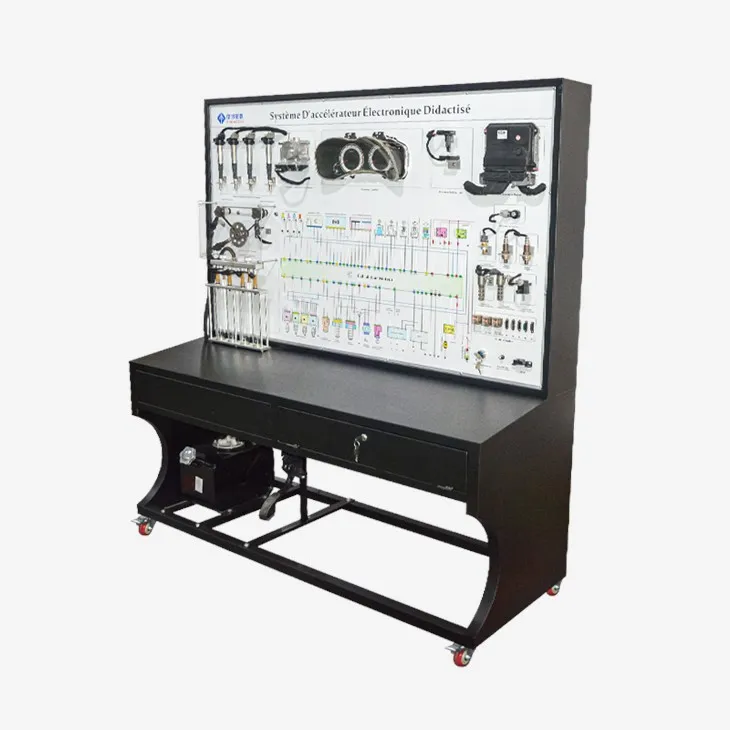

Engine Electronic Acceleration System Training Table

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of engine electronic acceleration system training table in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

I. Product requirements
The equipment adopts the real parts of Toyota Corolla 1ZR-FE engine electronic control system, which can fully demonstrate the composition structure and working process of the engine electronic acceleration system.
Second, the functional requirements

1. Virtual work Electronic engine 1.The training platform is welded with high-strength, corrosion-resistant, durable and high-quality steel. After the spraying process, it will have an elegant and sophisticated appearance. The table has self-locking rollers. It is easy to move, flexible, safe, reliable and durable.
2. The training board uses a normal AC220V power supply, which can be converted into a DC12V power supply by means of an internal circuit, reducing the problem of charging without a battery, and the DC12V power supply has the function of preventing short circuit.
3. The training board has detection terminals, which can directly detect electrical signals such as resistance, voltage, current and electronic circuit components of the motor control system on the board.
4. A diagnostic card is installed on the indicating panel, which describes the operation of the vehicle-specific or general-purpose decoder, motor control system, fault code reading, fault code and other self-diagnostic functions. system.

5.The training platform is welded with high-strength, corrosion-resistant, durable and high-quality steel. After the spraying process, it will have an elegant and sophisticated appearance. The table has self-locking rollers. It is easy to move, flexible, safe, reliable and durable.

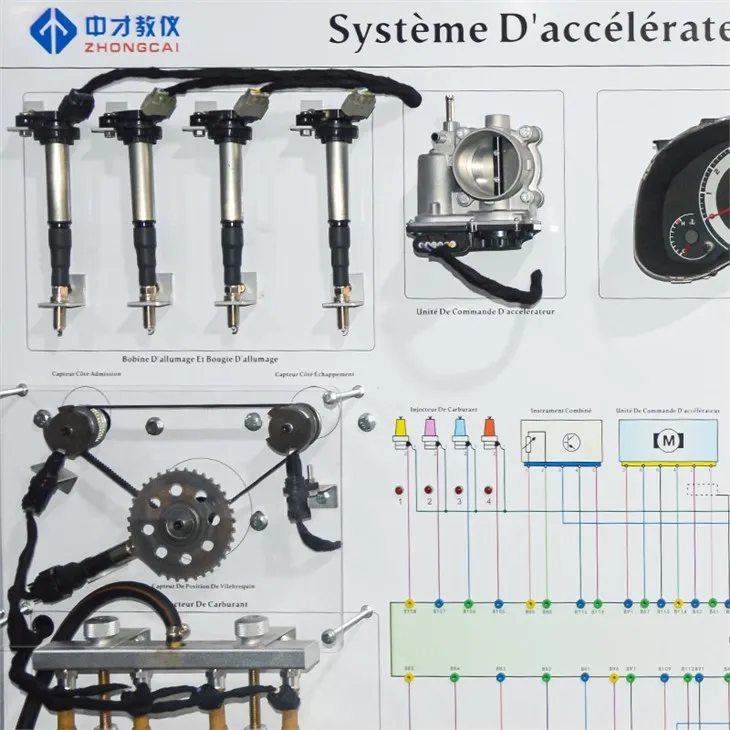

6.The electrical schematic diagram on the training board is painted with spray paint. 4mm thick aluminum injection molded board, resistant to high temperature difference, wear-resistant, moisture-proof and durable. Not easy to damage, long life, bright color, not easy to fade, etc. Students discover a deep understanding of mechanics and physics to identify and analyze the principles of operation of electric motor control systems.
Size: 1600 * 800 * 1800mm (L * W * H)
Power supply: AC220V
