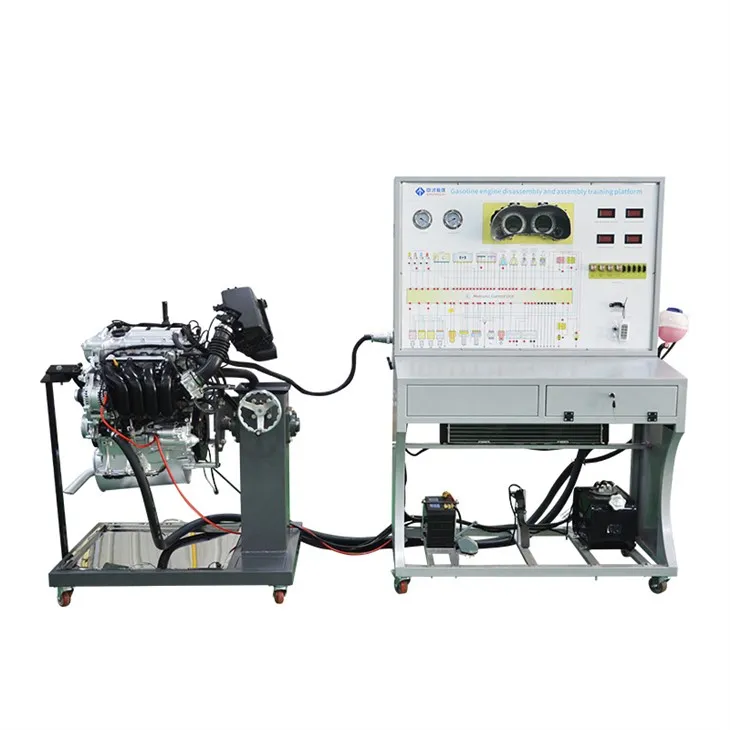

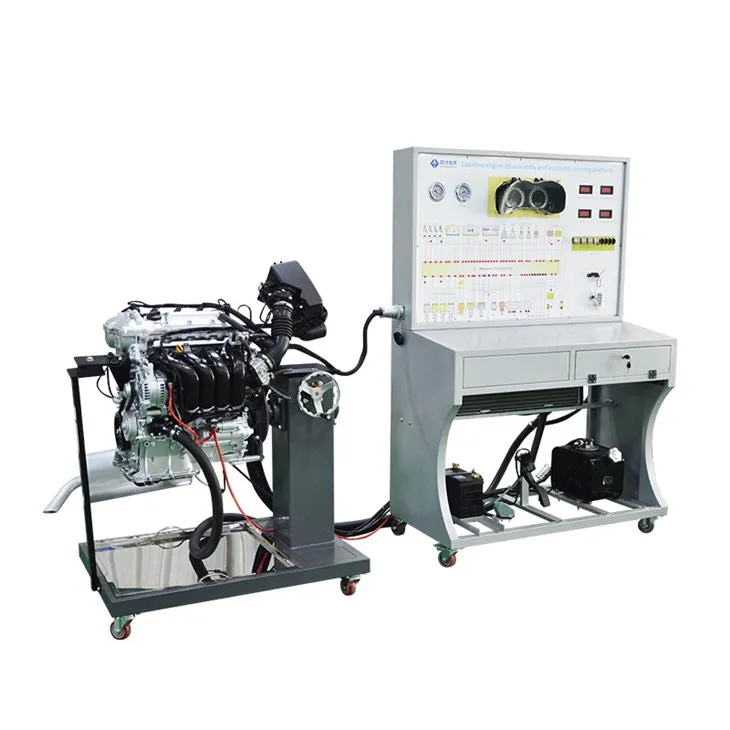

Auto Engine Disassembling And Running Trainer

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of auto engine disassembling and running trainer in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.



The engine trainers demonstrated the structure and basic principles of gasoline or diesel engines for engine disassembly, operation, inspection, modification and debugging.



Product composition



Engine assembly 1PCS

Dashboard 1PCS

Battery 1PCS

Test panel with circuit schematic 1PCS

Accessories for starting engine 1PCS

Mobile stand 1PCS

Flip stand 1PCS



P.N:ZC-1006A



Technical parameter



1. Dimensions: Rolling stand 1100x700x1100mm;

  Training bench: 1000x600x1100mm

2. Work voltage: 12V DC

3. Fuel tank size:10L



Main features



1. The trainer uses diesel engine and related spare parts. Suitable for the training of the understanding of the engine's structure and control system.



2. The disassembly station contains the base, flip frame, speed reducer, and pick oil basin. The engine can be rotated 360 degree during the assembly and disassembly process and can be stayed stable at any angle, which makes the disassembly work very easy.



3.The engine can be connected to the, oil, gas, and water etc which installed on the mobile stand panel and can be started and accelerated as a real engine working.



4. The trainees can run and start the engine ie starting, idling, accelerating, and decelerating after the assembly of the engine.



5. Electrical control circuit, test terminal, dashboard and diagnosis seat of the original car are installed on the test panel.



   6. A large oil basin can make the tool, spare parts and oil do not leak to the ground



Training courses



1. Function introduction of main components of diesel engine;

2. Demonstration of running, starting, accelerating, etc of the engine;

3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;

4. Practical exercise of engine disassembling and assembling an auto engine;



Suitable car or engine models listed below:



P.N.



Car model

GTAT-1006A-001

Isuzu 4JB1(Diesel)

GTAT-1006A-002

JMC CB10(Diesel)
