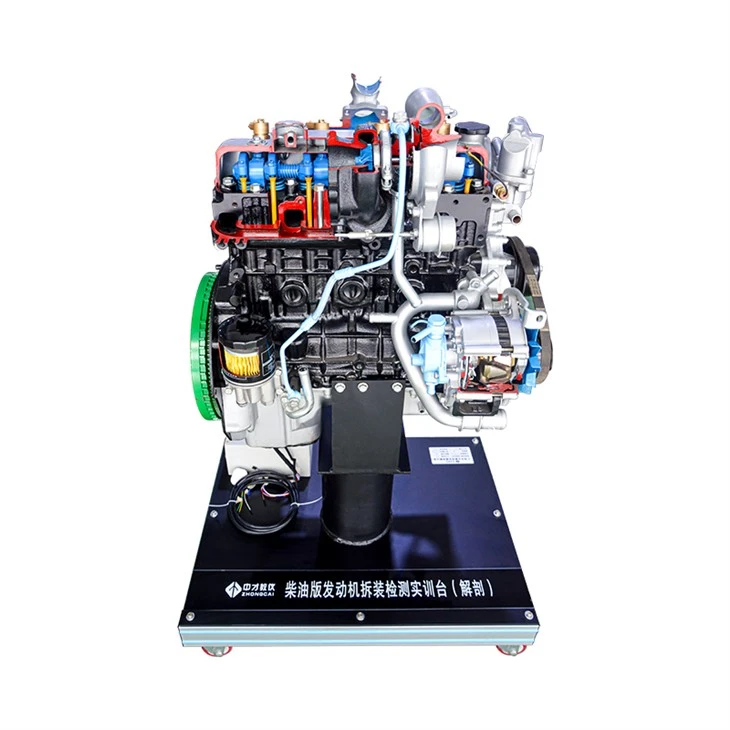

Diesel Engine Anatomy Display Stand

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of diesel engine anatomy display stand in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction
The equipment uses a diesel engine assembly for cross-section processing. All components are complete and the cross-section position is reasonable. It can fully display the internal and external structure of the engine and the movement of the components. It is suitable for the teaching of engine principles and mechanical mechanisms.
Features
1. Use the original engine assembly for mechanism cutting to fully display the internal and external structure of the engine mechanism.
2. Use different colors of paint to spray each mechanical section of the engine.
3. The engine crankshaft is driven by a single-phase gear reduction motor with adjustable speed to run at a low speed, which truly demonstrates the movement process of the mechanical parts inside the engine.
4. The mobile stand is made of high-strength steel structure welding, and the surface is spray-painted. The bottom of the mobile stand is equipped with self-locking casters, which is movable and convenient for teaching.
5. Anatomical location:
Cylinder body (piston and crankshaft can be observed outside the operation);
Valve cover (camshaft can be observed outside of operation);
Cylinder head (intake and exhaust valves can be observed outside of operation);
Intake and exhaust manifolds and filters;
Generators and water pumps;
Timing mechanism (timing mechanism can be observed outside the operation);
Technical specifications
Dimensions: 800×600×1200mm (length×width×height)
Power supply: 220V±10% 50Hz
Single-phase gear reduction motor:
Rated voltage: AC 220V 50Hz
Rated power: 250W
Rated speed: 0-15 rpm
Working temperature: -40℃～+50℃
Steel pipe: 60*40*3mm
Mobile casters: 100*50mm
