Automotive Electrical System Automobile Anti-theft System Training Panel

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive electrical system automobile anti-theft system training panel in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

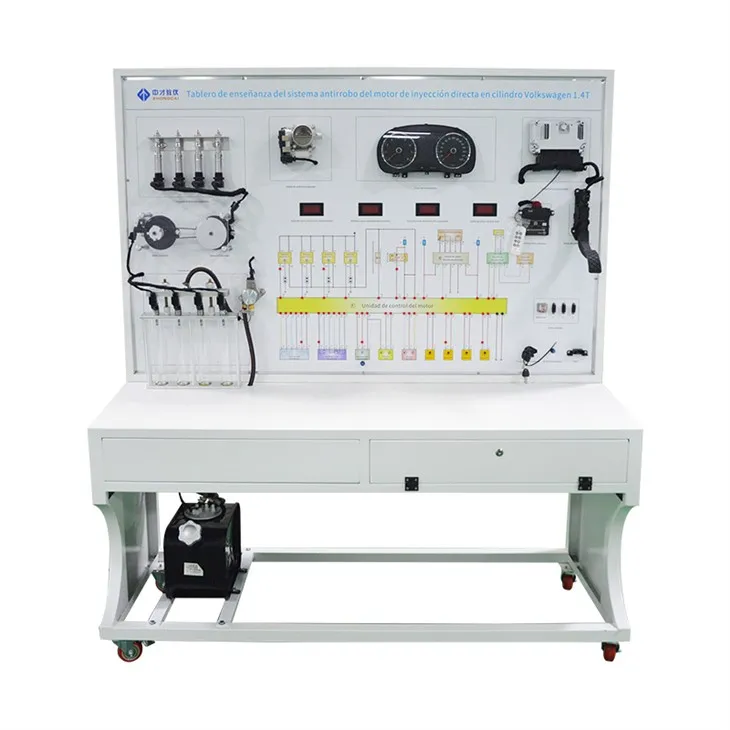

Automotive electrical system automobile anti-theft system training panel

Key Features

Fully functional engine anti-theft system for real-time demonstration.

Motor-driven crankshaft signal disk to simulate variable engine speed.

Supports both legal and illegal key operations: legal keys activate injection, ignition, and fuel pump, while illegal keys lock the ECU.

Equipped with injectors, fuel pump indicators, pressure gauges, and glass measuring cups for intuitive observation.

Integrated diagnostic connector for OBD functions, including fault code reading, data stream analysis, ECU coding, key matching, and waveform testing.

Panel includes detection terminals for voltage, resistance, current, and frequency measurements, making it an ideal automotive electrical trainer board.

Fault simulation via remote control allows teachers to set and reset common failures for student practice.

Rugged structure with high-quality wiring harnesses, safety fuses, and durable wheels ensures long-term classroom use.

Technical Specifications

Dimensions: approx. 1600×600×1700mm

Power Supply: AC 220V±10%, 50Hz

Working Voltage: DC 12V

Operating Temperature: -40℃ to +50℃

Training Objectives

Understand the structure and principles of automotive anti-theft systems.

Practice sensor signal testing and voltage analysis.

Gain diagnostic skills using an automotive diagnostic trainer.

Improve fault analysis and troubleshooting abilities through hands-on practice.

This trainer is widely applied in vocational schools, training centers, and research institutions. It is an advanced automotive electrical training aid that combines practical teaching with diagnostic technology, making it an excellent choice for modern automotive education.
