Car Electric Window System Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of car electric window system teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

1 Product parameters
Product size: 1200×700×1800mm(length × width × height)
It weighs about 100kg
The supply voltage is AC220V

2. Technical Specifications

(1) Product introduction

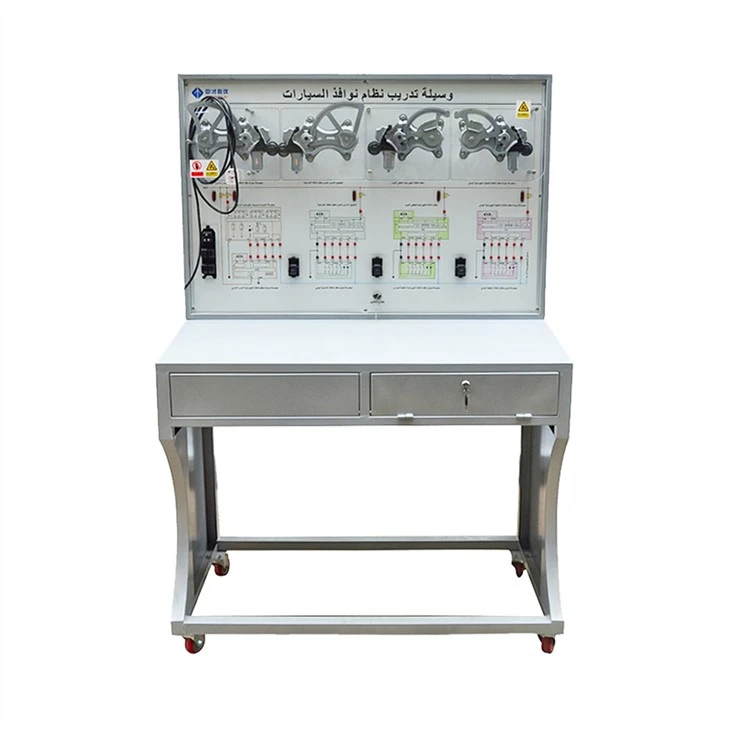

The car electric window system teaching board is based on Toyota Land Cruiser car electric window system, which can show the composition structure and working process of electric window system. It is suitable for the teaching needs of automobile electric window system theory and maintenance training.

(2) Functional characteristics
1. The real and operational car electric window system can show the switch and actuator structure of the electric window system.
2. The ignition switch and window lifting control switch on the control panel can demonstrate the lifting and descending working process of the electric car window system.

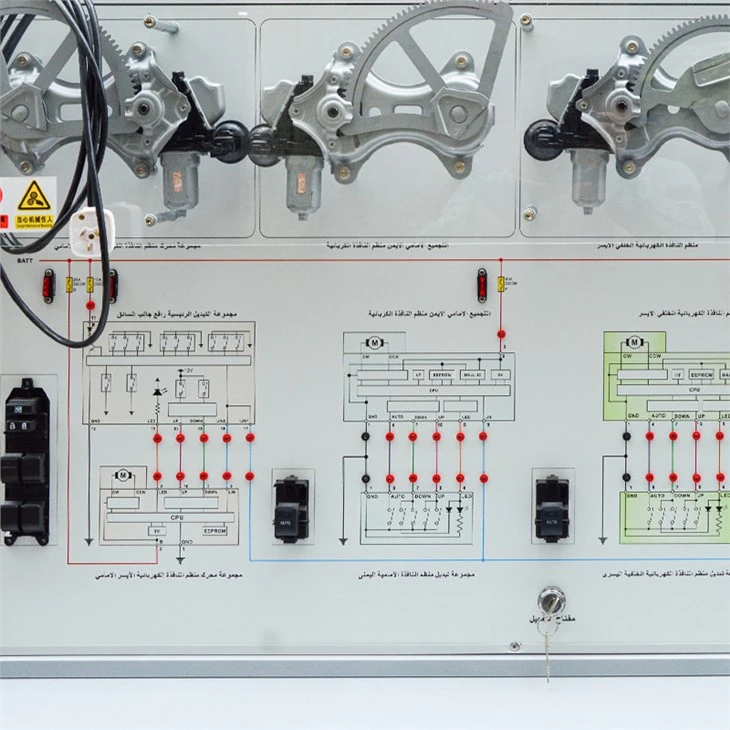

3. The car electric window system teaching board is made of 4mm thick aluminum-plastic plate with corrosion resistance, impact resistance, pollution resistance, fire resistance and moisture resistance. The surface is treated by special process spraying primer. The panel is printed with color circuit diagrams that never fade, and the surface is sprayed with glossy oil; Students can understand and analyze the working principle of electric car window system by directly comparing the circuit diagram and the object.
4. Detection terminals are installed on the panel of the car electric window system teaching board, which can directly detect the electrical signals of each circuit component of the automobile electric window system, such as resistance, voltage, current, frequency signals, etc.
5. The surface of the car electric window system teaching board adopts 1.5mm thick mold forming aluminum alloy frame structure; The bottom frame is made of 40*40*2.5mm cold rolled square pass welding compared with hot rolled square pass, and the strength is better. The surface is treated by spraying process. By spraying treatment, it has the characteristics of beautiful, durable, wear resistance, chemical corrosion resistance and UV resistance. With self-locking caster device, the teaching board base is equipped with a table top of about 40cm, which is convenient for placing data and light testing instruments.
6. The teaching board uses ordinary 220V AC power supply, which is converted into 12V DC power supply through internal circuit transformer rectification. 12V DC power supply has short-circuit prevention function.
7. Equipped with fault setting and assessment system.
