Can/most Bus Training Simulator On Board Automotive Electrical Training Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of can/most bus training simulator on board automotive electrical training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product introduction:

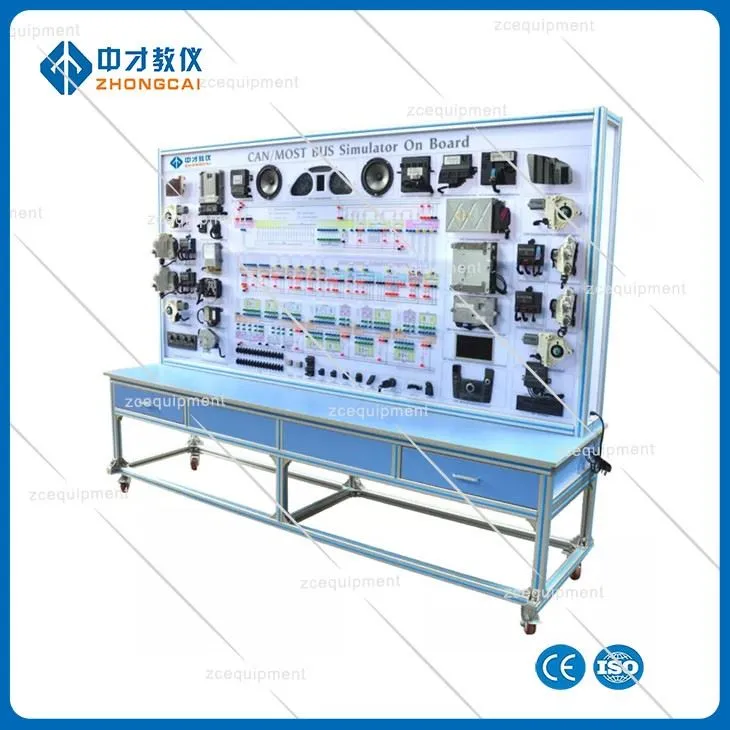

Based on the real audi vehicle gateway system, the training system integrates all relevant sensor actuators into a teaching board, which demonstrates the working principle of the vehicle gateway system.Can carry out fault diagnosis, data measurement and other practical training operations.

Functional features:

1. The real and operational communication system of automobile CAN/LIN/MOST fully demonstrates the structure and working process of automobile gateway communication system.

2..A digital display table is installed on the panel of the training platform, which can display the real-time changes of related sensor parameters.

3. The measurement panel of the training platform is painted with color inkjet circuit diagram, and equipped with detection terminals, which can directly detect the electrical signals of each sensor, actuator and control unit pin on the panel, such as resistance, voltage, current and frequency signals.

4. The training platform is equipped with fault setting system, which can set one or more common faults to simulate the circuit fault of gateway communication system, so as to achieve the purpose of examination.

6. The training platform is equipped with a diagnosis seat, which can be connected to a special or general purpose vehicle decoder, and perform self-diagnosis functions such as reading fault code, clearing fault code and reading data stream for the gateway communication system.

Materials and techniques:

1. The measuring panel of the training platform is made of 8mm thick high-strength acrylic sheet by jet painting, which is resistant to large temperature difference, wear-resisting, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright color, not easy to fade and other characteristics.

2. The training platform is made of international standard aluminum alloy profiles, which are characterized by light quality, high strength, corrosion resistance and long service life. Without the need of spraying process, it is more environmentally friendly, more beautiful and high-grade in appearance.

3. The base of the training platform is made of advanced environment-friendly synthetic wood and aluminum alloy profile, with two practical and beautiful drawers for daily teaching supplies.

4. The groove of aluminum alloy profile is covered by PVC strip inlay, which not only has the dust proof effect, but also can outline the outline of the whole training platform, which is more beautiful.

Teaching content:

1. Cognition of configuration and composition of automobile gateway communication system

2. Understand the control principle of automobile gateway communication system

3. Master the basic knowledge of automobile gateway communication system

4. Master the working principle of automobile gateway communication system

5. Ability to independently enumerate and explain components of automotive gateway communication systems

6. Master the working conditions of the sensor actuators of the automotive gateway communication system

7. Independently troubleshoot and repair the vehicle gateway communication system
