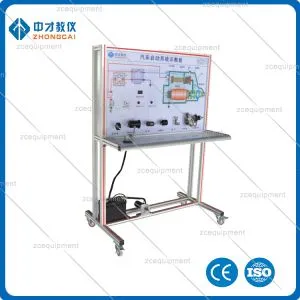

Automotive Experimental Teaching Equipment Starting System Training

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive experimental teaching equipment starting system training in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Main Features

Fully functional starting system with real starter motor operation, displaying current and voltage changes through panel instruments.

Equipped with P/N and clutch switches to simulate both automatic and manual transmission starting conditions.

High-standard wiring with soldered joints, heat shrink tubing, and automotive-grade fuses and relays to ensure durability.

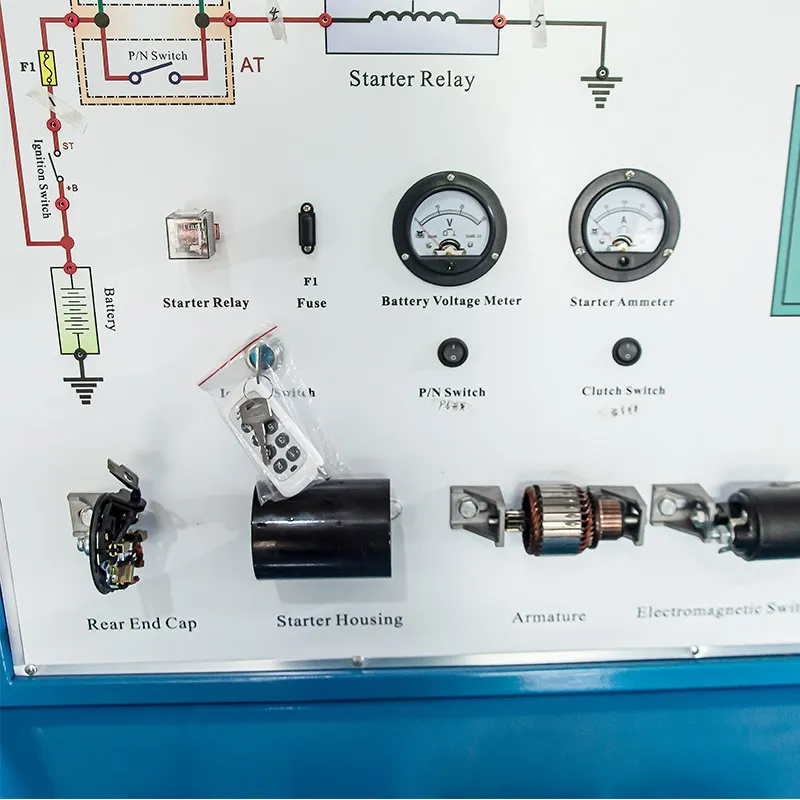

4mm corrosion-resistant aluminum-plastic panel with printed color wiring diagram, enabling direct comparison between schematic and physical components.

Starter motor assembly parts displayed with labels for structural understanding.

Testing terminals available for voltage, resistance, current, and frequency signal measurements.

Fault simulation system controlled by a remote, supporting up to 10 meters operation for hands-on fault diagnosis.

Strong steel frame with self-locking casters and a convenient desktop for tools and learning materials.

Provided with operation manual, training videos, and consumables (fuses, relays) to enhance teaching efficiency.

Technical Specifications

Dimensions: 1200×600×1700mm (L×W×H)

Voltage: DC 12V

Temperature range: -40℃ to +50℃

Frame: 60×40×3mm steel pipe, 1.5mm cold-rolled cabinet

Casters: 100×50mm with locking

Training Objectives

Master the structure and working principle of the automotive starting system.

Learn to measure and analyze electrical signals.

Develop troubleshooting and diagnostic skills using simulated faults.

Strengthen practical ability with comprehensive automotive electrical training aids.

This trainer board is ideal for automotive schools, vocational institutions, and training centers, making it an essential automotive basic electric circuit trainer for professional education.

Contact Us
CELL: +86 13054484532 / +86 18529153085
Email: biz.m@gdzcee.com / biz.w@gdzcee.com

FAQ:

1.How many years of production experience does your factory have?

We are manufacturer who professional suppiler for automobile teaching equipment nearly 10 years.

2.Where do your customers usually come from?

Our market is global.

3.Do you produce any other products except auto training board?

Yes, we have car anatomy display stand, car electronic test box ,car repairing&fixing tools etc.

4.Can you do customized equipment ?

Yes, we are an ODM / OEM factory.
