Electronics Trainer Kit

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electronics trainer kit in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

【Product profile】

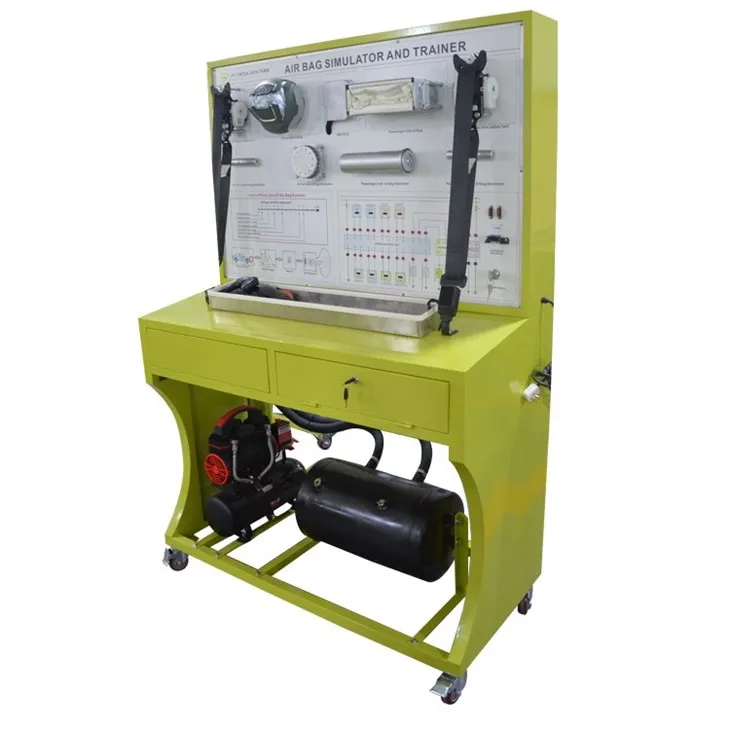

1. Auto airbag and seat belt tightener system teaching board adopts Passat auto airbag and seat belt tightener system in kind as the basis, fully displaying the composition structure and working process of auto airbag and seat belt tightener system.
2. Car airbag and seat belt tightener system teaching board is suitable for the teaching needs of the theory and maintenance practical training of car airbag and seat belt tightener system in school.

【Functional characteristics】
1. The real can run the automobile airbag and the seat belt tightener system, the full display automobile airbag and the seat belt tightener system composition structure.
2. Manipulate the collision trolley, simulate the car collision process, left and right simulation airbag rapid inflation and expansion, real demonstration of the work process of the car airbag system.
3. The panel of the teaching board adopts 4mm thick corrosion-resistant, trauma-resistant, pollution-resistant, fireproof and moisture-proof senior aluminum plastic board, the surface is treated by special process of spraying primer; the panel is printed with colorful circuit diagram that never fades; the students can visually control the circuit diagram and the real thing, recognize and analyze the working principle of the automobile airbag system.
4. There are detection terminals installed on the panel of the teaching board, which can directly detect the electrical signals of the circuit components of the airbag system, such as resistance, voltage, current, frequency signals, etc.
5. There is a diagnostic seat installed on the panel of the teaching board, which can be connected with special or general-purpose auto decoder to read fault codes, clear fault codes and other self-diagnostic functions for airbag control unit.
6. The panel part of the teaching board adopts 1.5mm cold plate stamping and forming structure, with beautiful appearance; the bottom frame part adopts steel structure welding, the surface adopts spraying technology treatment, with self-locking castor device, moving flexible, safe, reliable, strong and durable.
7. The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply by the internal circuit, without battery, reducing the trouble of charging, and the 12V DC power supply has anti-short circuit function.

【Technical specifications】
Dimension (L×W×H): 1240×600×1700mm
External power supply: AC 220V±10% 50Hz
Working voltage: DC 12V
Working temperature: -40℃～+50℃
Color：7032
Steel tube: 40*40*3mm
Cabinet: 1.5mm cold plate stamping and forming, maintenance door set at the back.
Mobile casters: 100*60mm
