ABS Braking Trainer Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of ABS Braking Trainer Equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

ABS Braking Trainer Equipment

Technical Specifications
**Dimensions:** Typical range 1240×600×1700mm to 1500×1000×1700mm (L×W×H);
**Power Supply System:** Drive power AC 380V±10% 50Hz (three-phase), control power AC 220V, operating voltage DC 12V;
**Drive Configuration:** Three-phase asynchronous motor (3kW–4kW), speed approx. 1420 rpm, equipped with a variable frequency drive (VFD) for speed control;
**Pressure Display:** Main oil circuit pressure gauge (0–250 kg/psi), sub-circuit pressure gauges (0–100 kg/psi, 4 independent channels);
**Operating Temperature:** -40°C to +50°C;
**Structural Materials:** Panel made of 1.5mm cold-rolled steel sheet; frame made of 40×40×3mm steel tubing; equipped with universal self-locking casters;
**Core Components:** OEM ABS ECU, hydraulic pump assembly, 4 wheel speed sensors, diagnostic port (OBD interface), and fault simulation unit.

Key Functional Features

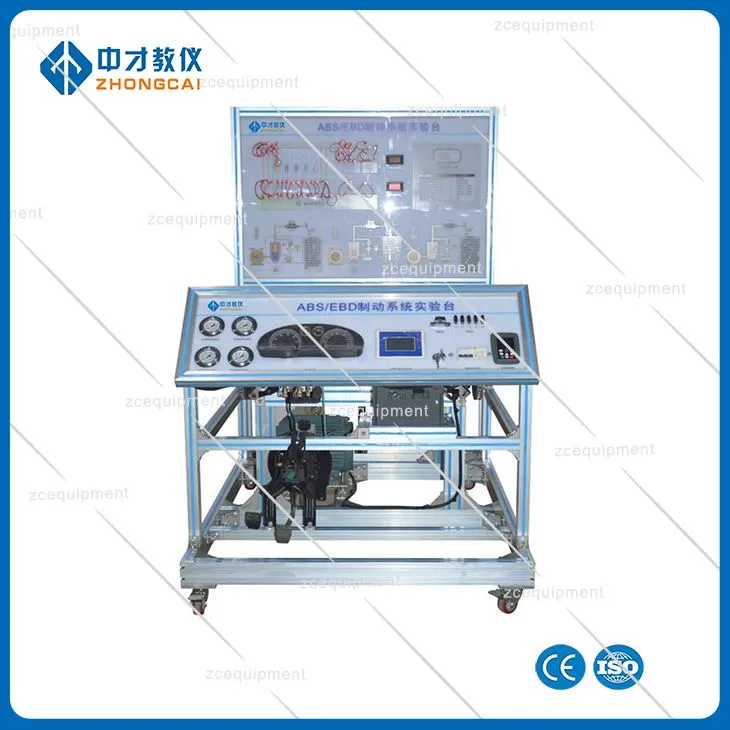

**Physical Demonstration:** Based on the OEM ABS system from a Volkswagen Jetta; capable of real operation to demonstrate the wheel-lock prevention process during emergency braking;
**Testing & Diagnosis:** Panel features test terminals supporting voltage, resistance, and signal waveform measurements; equipped with a diagnostic port for reading fault codes and data streams, as well as performing actuator tests;
**Fault Simulation:** Built-in fault setting area allows for the simulation of common circuit faults-such as open circuits, short circuits, and poor connections-for troubleshooting training;
**Visualized Instruction:** Panel displays color-coded OEM circuit schematics and hydraulic piping diagrams; pressure gauges provide real-time monitoring of braking pressure changes.
