Automatic Transmission Dissection Display Model Automotive Teaching Equipment

Product Structure

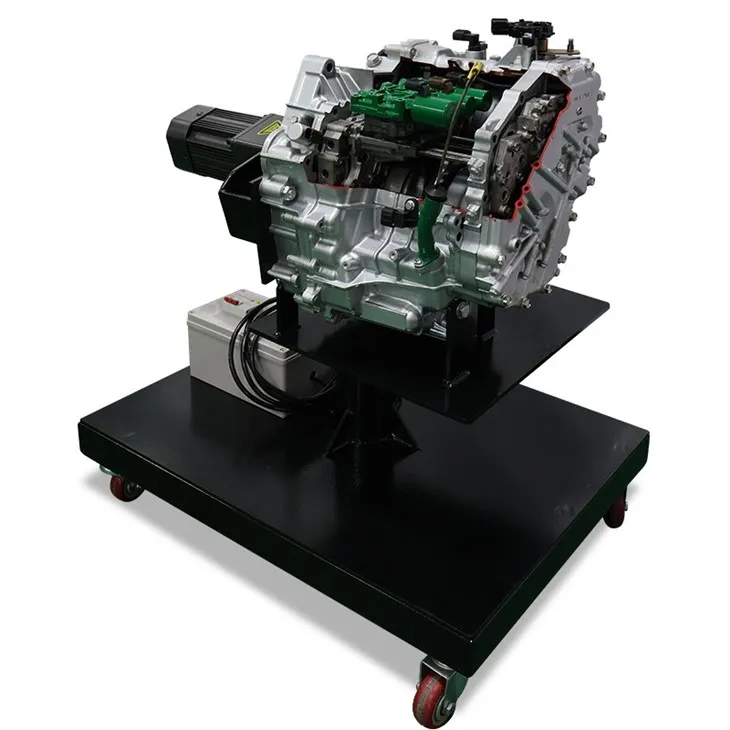

The automatic transmission prototype is shown in various cross-sections, each painted a different color to highlight its structural layers.

Main Functions:

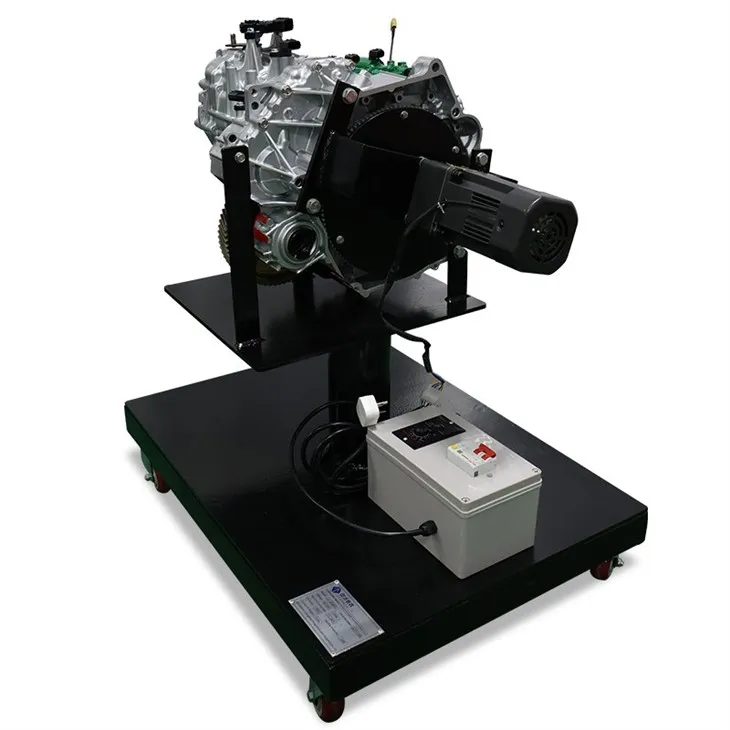

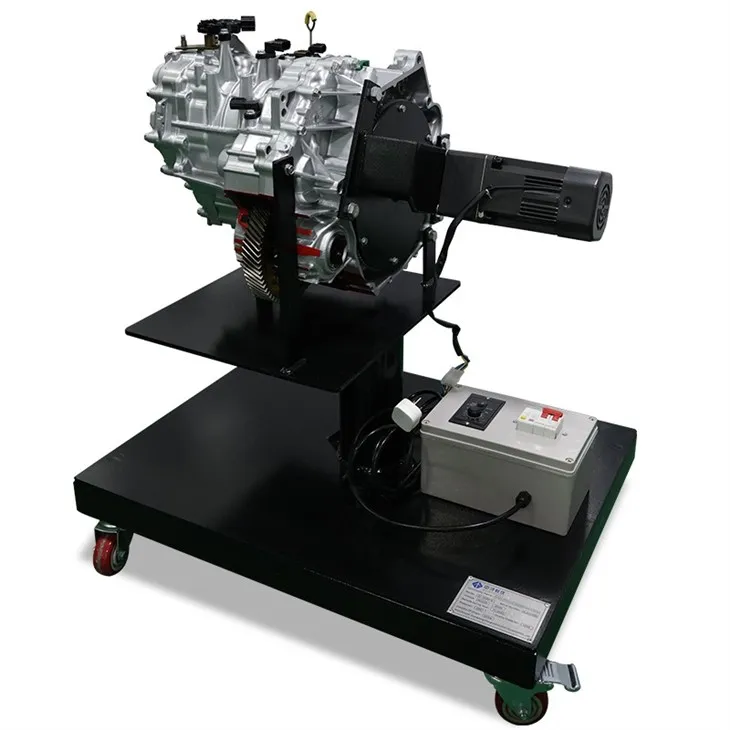

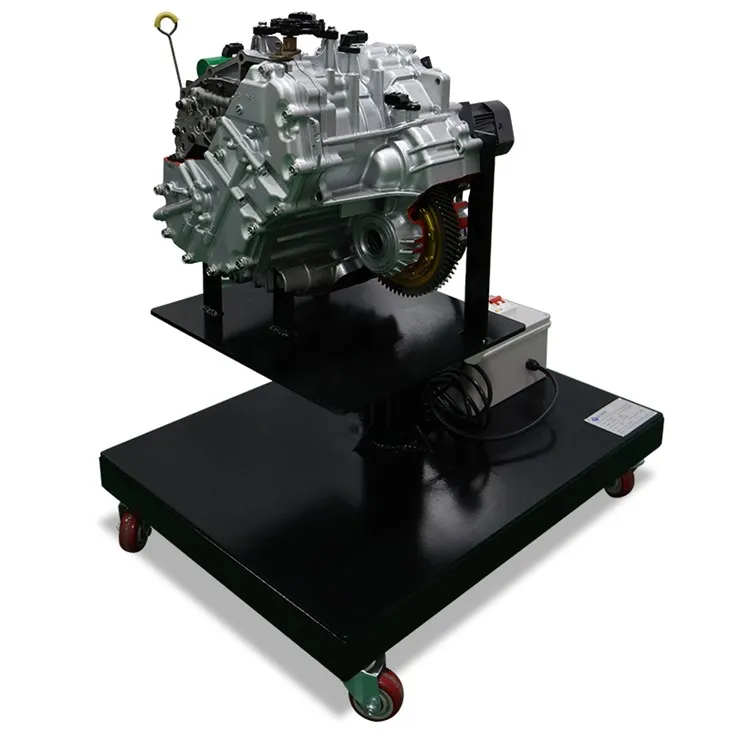

The automatic transmission test bench is designed in a anatomical style, clearly displaying all operating parts and the internal workings of the automatic transmission. Casters with brakes facilitate movement and stability of the bench, which is finished with high-grade powder coating.

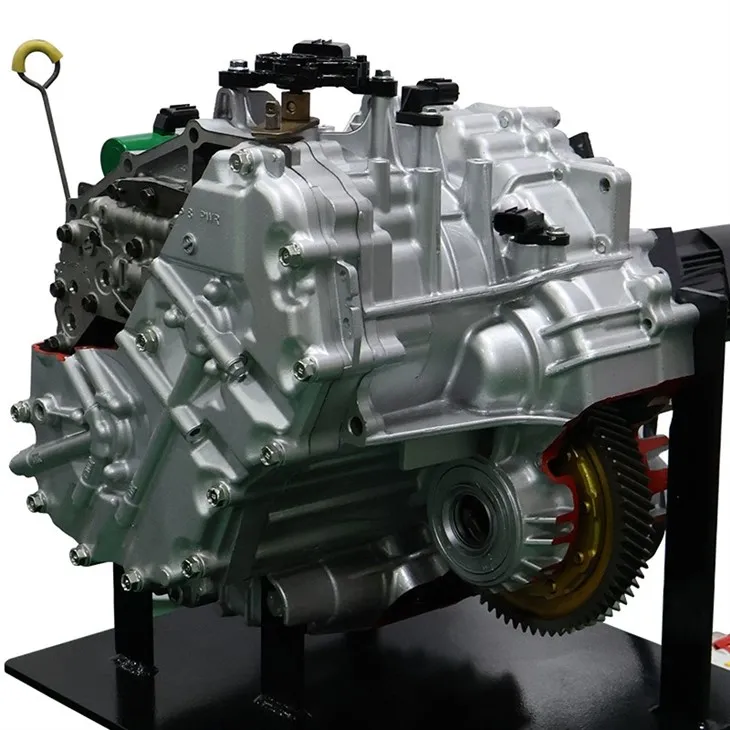

1. Various cross-sectional views of the automatic transmission and its internal parts comprehensively showcase the internal structure of the torque converter. This provides a standard reference for learning the disassembly, assembly, repair, diagnosis, and troubleshooting of mechanical faults in automotive automatic transmissions.

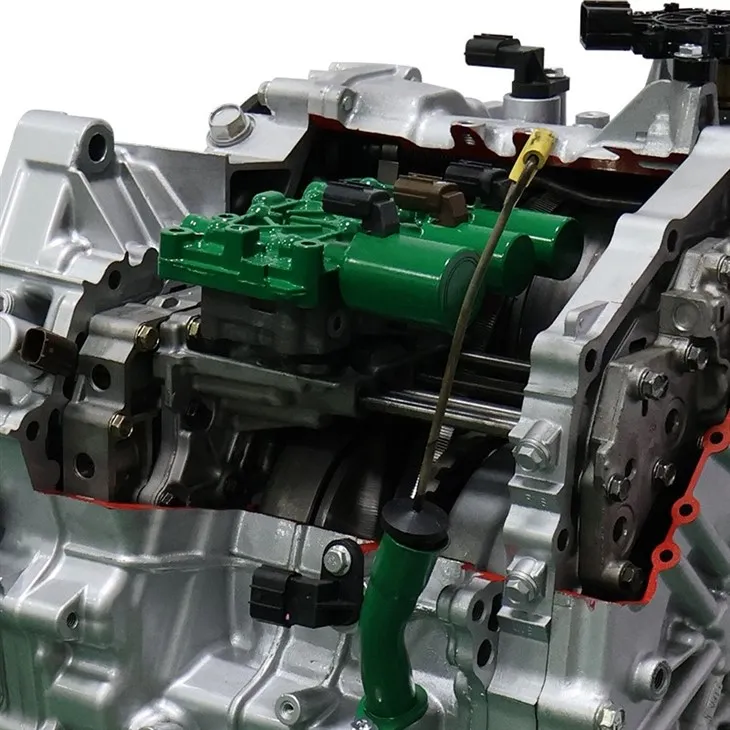

2. The anatomical views allow clear observation of the intricate mechanical components of the automatic transmission, such as the gear shift, transmission, clutch, brakes, and the hydraulic control system's pumps, pipes, and valves.

3. A simple explanation of the principle is provided by bridging the hydraulic lines, displaying the direction of hydraulic transmission, and featuring a removable manifold panel for easy explanation of the hydraulic circuitry.

4. The automatic transmission valve body is rigidly connected to the automatic transmission using screws, facilitating the teaching of hydraulic transmission in automatic transmissions.

5. Advanced machine tool dissection is used, with different colors used to distinguish different anatomical surfaces and different parts, allowing trainees to clearly observe the working status of internal components.

6. The entire frame is constructed with a steel welded structure and treated with high-temperature spray paint, providing excellent rust prevention and a long service life. The frame is equipped with omnidirectional casters for flexible movement and a caster locking device; operation is convenient, safe, and reliable.

III. Training Projects:

1. Understanding the structure of an automatic transmission system

2. Analysis of automatic transmission components

3. Experiment analyzing the gear transmission route of an automatic transmission system

4. Comprehensive diagnosis of an automatic transmission system
